Underfloor Heating & Large Format Floor Tiling – Porch in Warrington (WA4)
Underfloor heating installation with full floor preparation and large format tiling in a porch area.
The Preparation

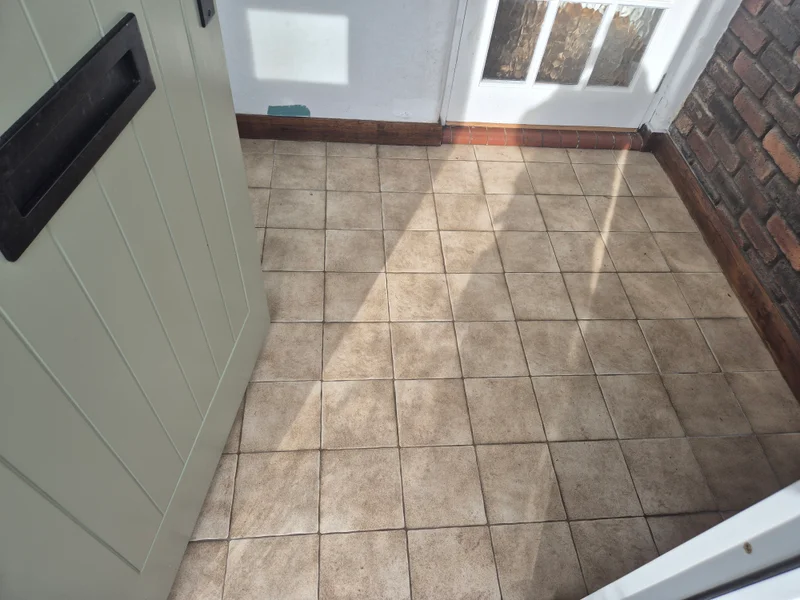

- —Existing floor taken up and the base brought back to level with self-levelling compound to get a solid starting point.

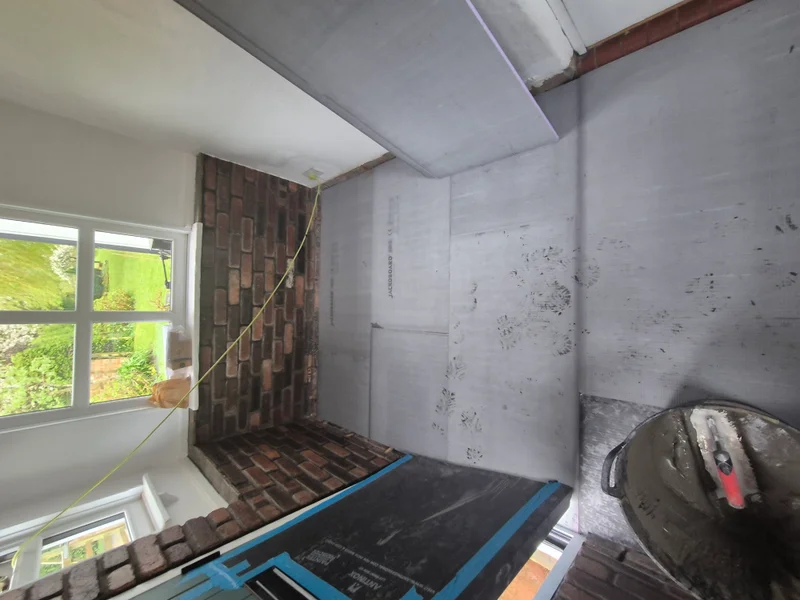

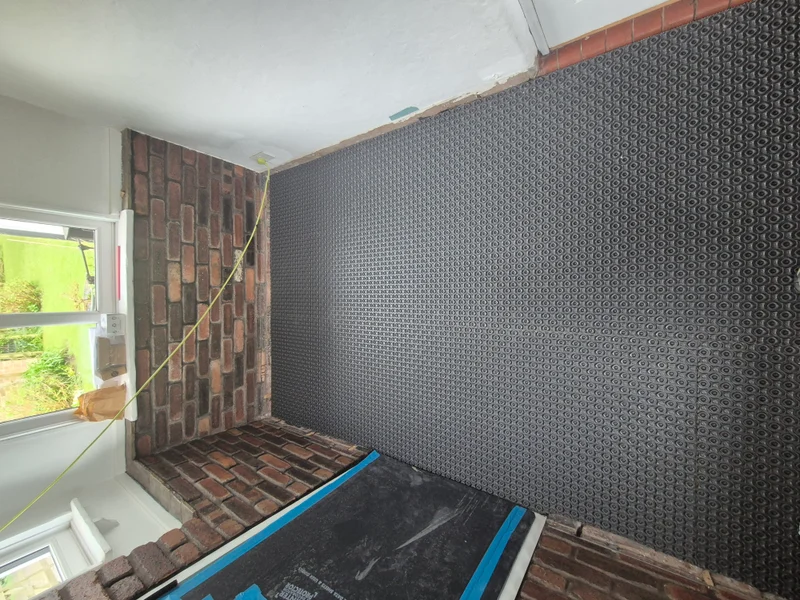

- —Thermal insulation boards were installed, followed by a decoupling system designed to take underfloor heating cable.
- —The heating cable was then installed across the full area and tested to make sure everything was working properly before covering.
The Detail

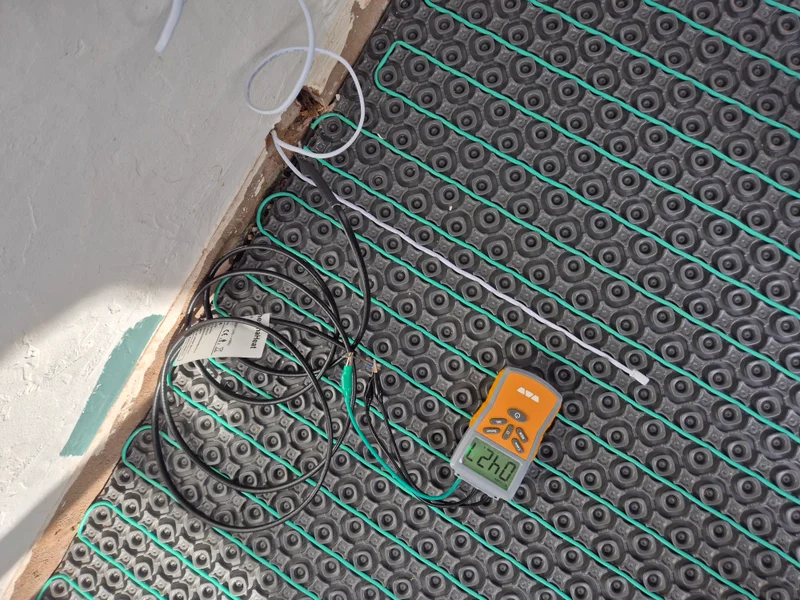

- —The underfloor heating was continuously tested throughout the installation using a live continuity monitor, ensuring the circuit remained intact from start to finish.

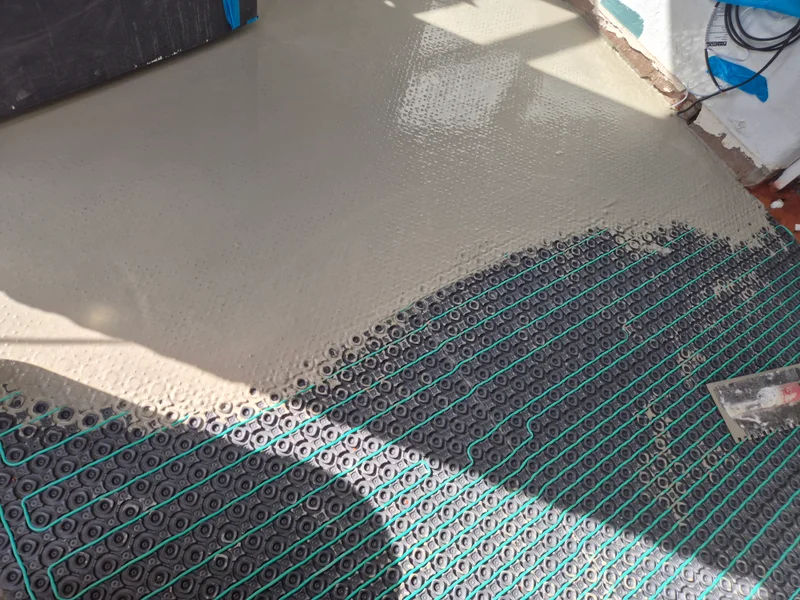

- —Once the heating was down and tested, the system was encapsulated using self-leveller to fully protect the cable and create a flat surface for tiling.

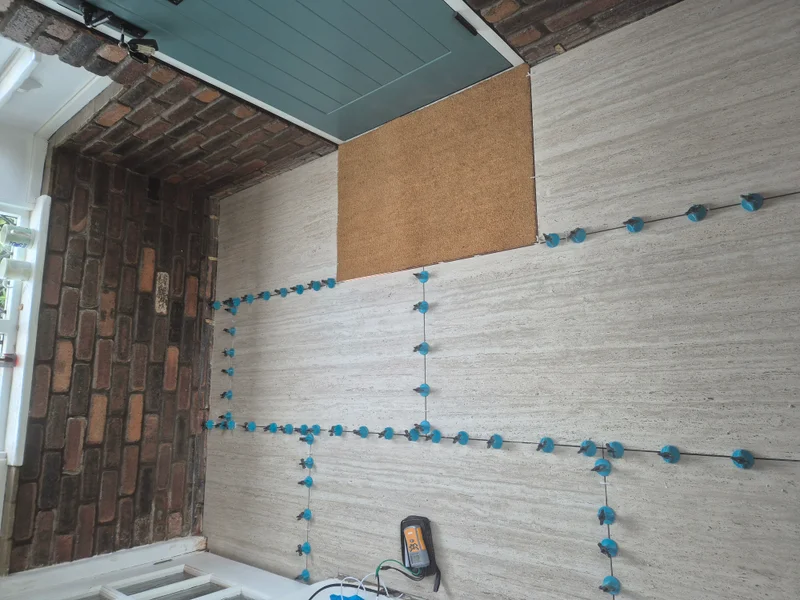

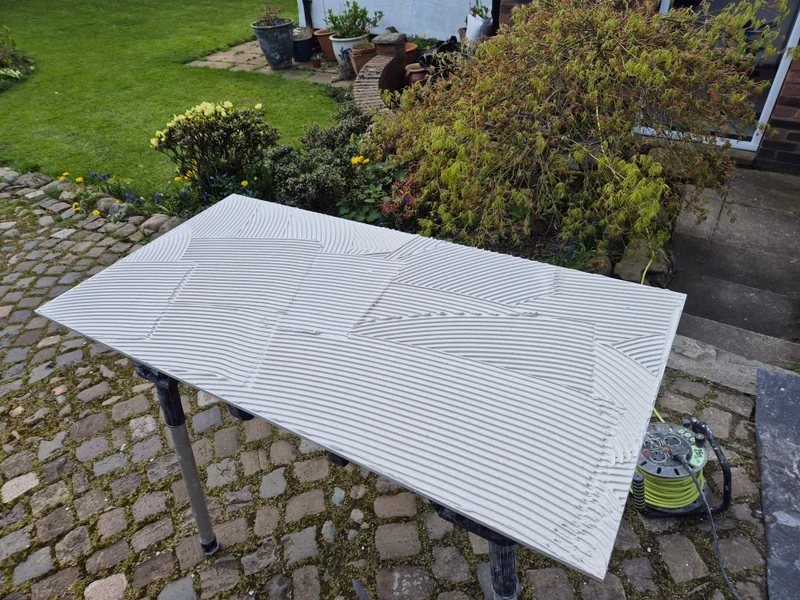

- —Large format 800x1200 tiles were then installed over the top, using a levelling system to keep everything flat and consistent across the floor.
The Result
- —Clean, level finish with underfloor heating running underneath — built properly from the ground up.
How the Job Was Done
From substrate condition through to the finished result.

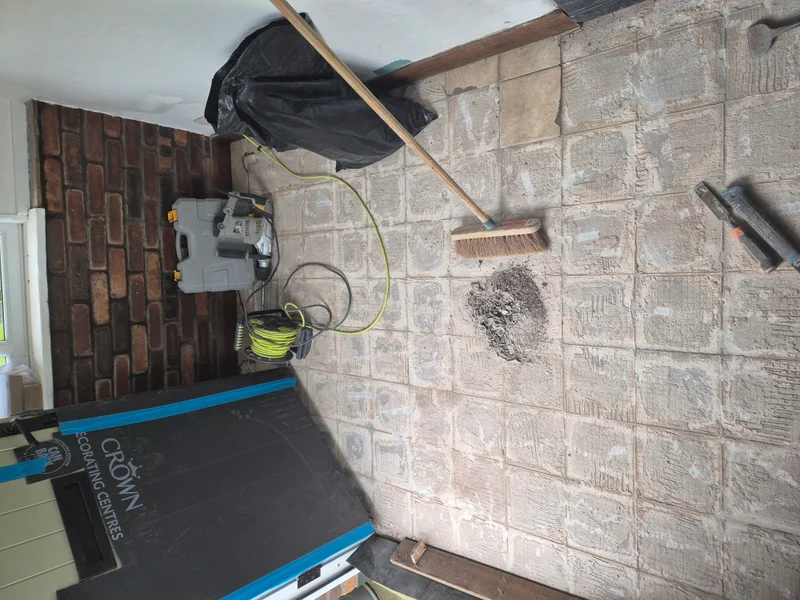

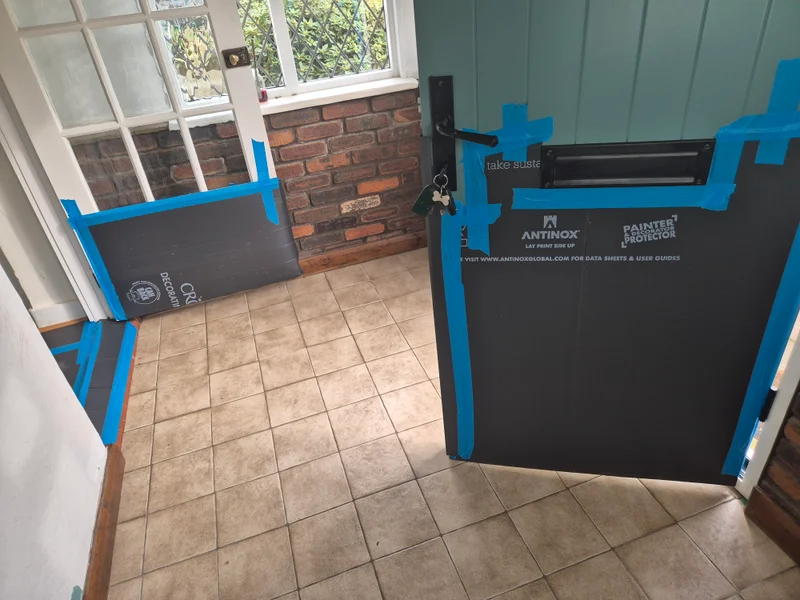

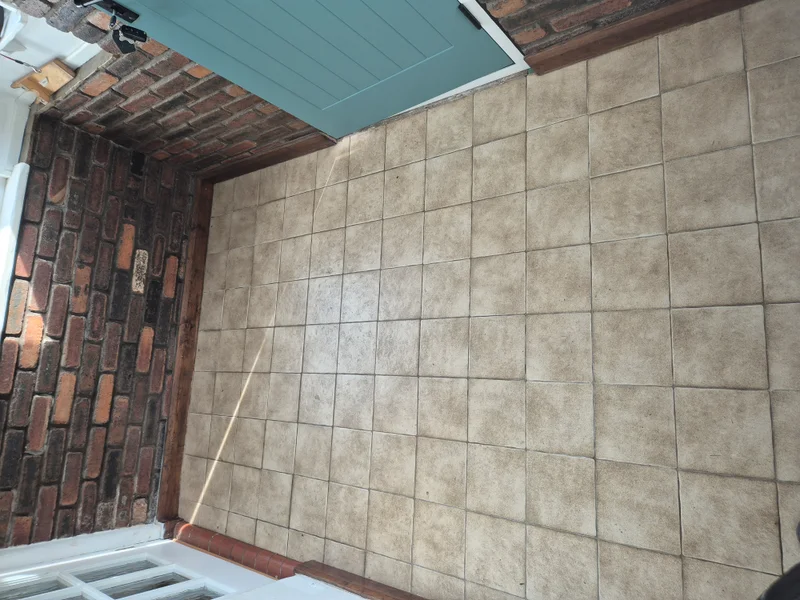

Floor preparation — old floor removed, subfloor levelled with self-levelling compound, thermal boards and decoupling system installed

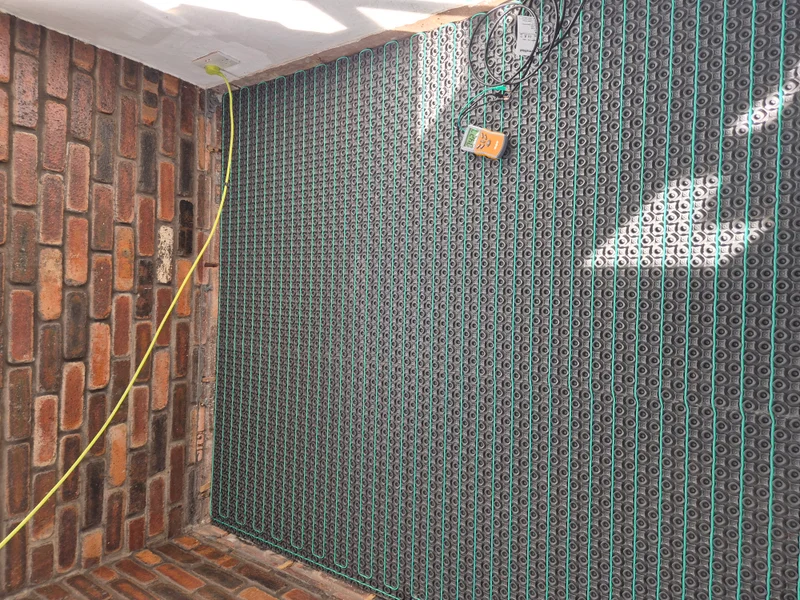

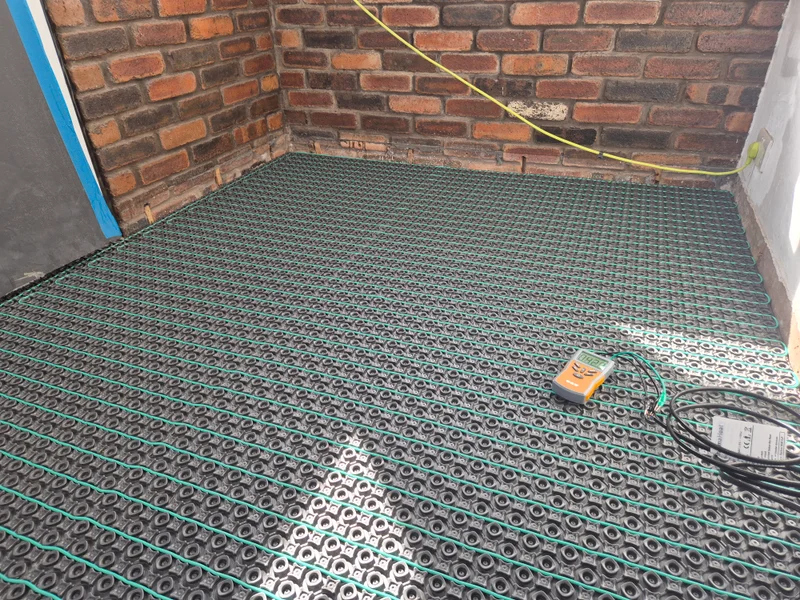

Underfloor heating installation — cable laid across full area, continuously tested with live continuity monitor before covering

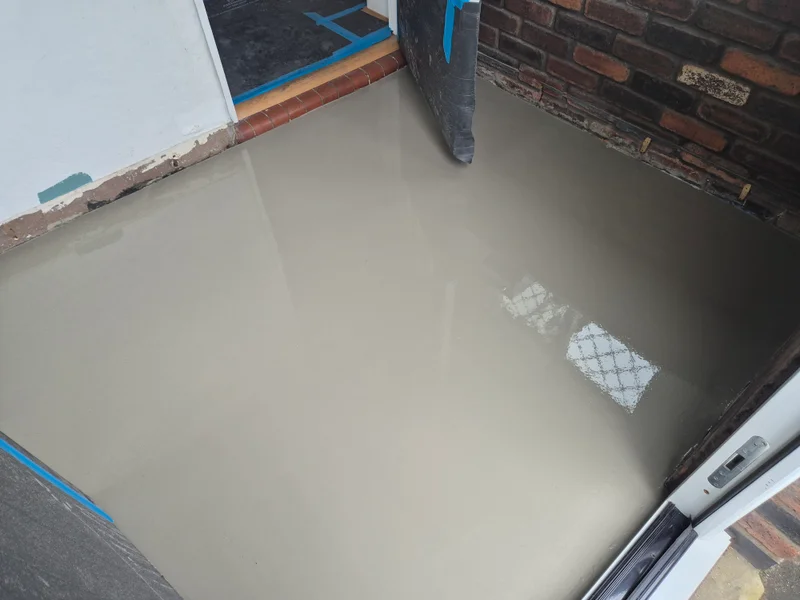

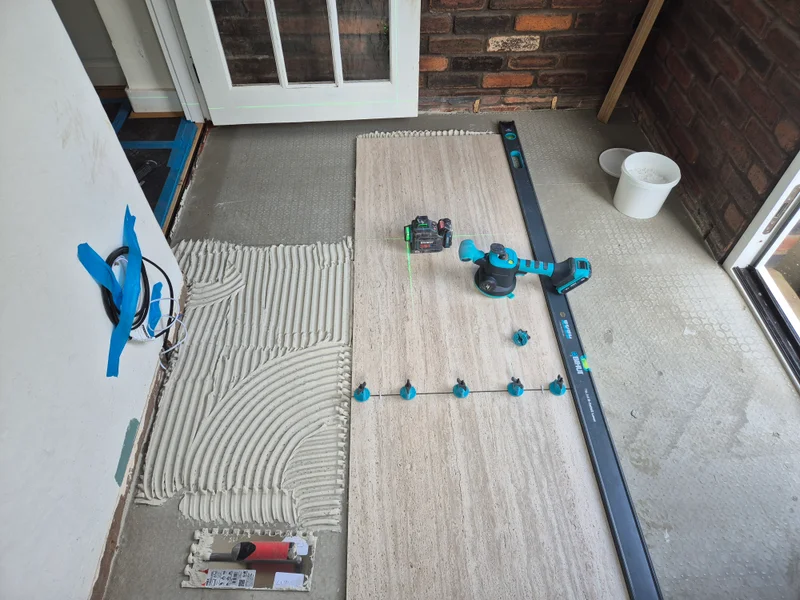

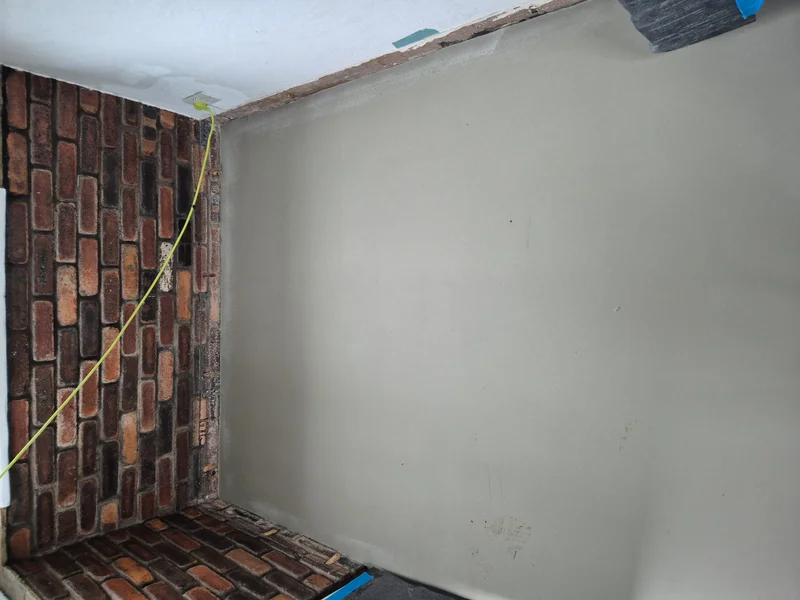

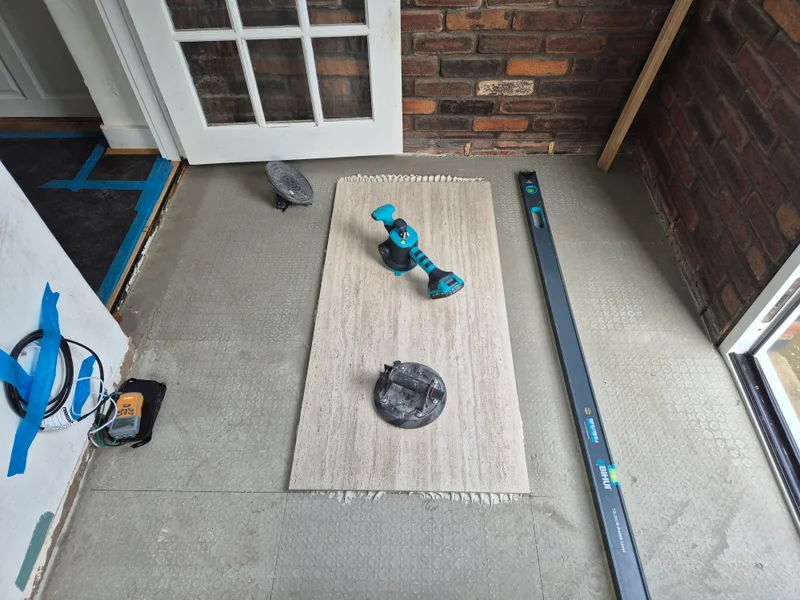

Cable encapsulation and tiling preparation — self-leveller protects heating system, large format 800x1200 tiles ready to install with levelling clips
Completed floor — flat, level finish with underfloor heating running underneath, built properly from the ground up
Services Used on This Project
This underfloor heating and large format floor tiling project was completed in Warrington (WA4), combining specialist underfloor heating installation with precision floor tiling to create a durable, comfortable porch space. The project demonstrates why proper preparation is essential — the underfloor heating system required careful planning, layer management, and continuous testing throughout the process. Full self-levelling at key stages ensured a solid foundation for both the heating system and the subsequent tiling, while large format 800x1200 tiles and mechanical levelling clips guaranteed a flat, lippage-free finish. Most problems with tiled floors come from what's underneath — this is why preparation comes first.
